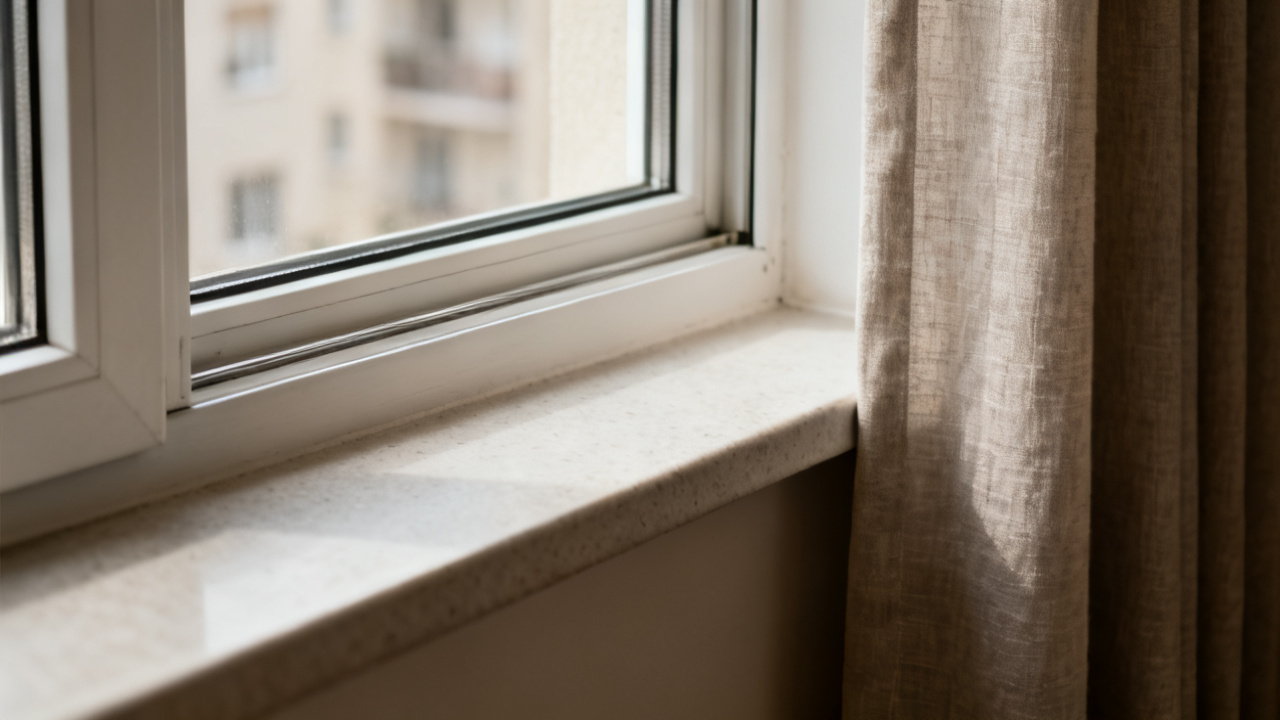

Light shows through where the two sashes meet. You’re standing in your apartment hallway, holding a tube of low-temp caulk and a plastic putty knife you grabbed from the utility closet 10 minutes ago. The draft coming through the gap makes the hem of your hoodie flutter against your calf, and you can hear crickets chirping from the fire escape outside the window. The Sill Latch clicks shut when you nudge the lower sash up a hair to test its fit, so you know the alignment is only off by a fraction of an inch.
Draft Source Assessment
You run a lit incense stick along the length of the meeting rail to map the full extent of the gap, watching for wicks of smoke that pull straight through to the outside. You mark the spots where the draft is strongest with a thin line of painter’s tape, so you don’t lose track of them when you set the incense down on the hallway console table. You know older wood sashes shift slightly every year as humidity levels rise and fall, so small gaps like this are common in buildings older than 20 years, which your apartment building is. You don’t want to overcorrect by sanding down the rail, since that could create an even bigger gap when the wood swells again in the summer, so a temporary seal is the best low-lift fix for right now. Illustrative example: A 1/16 inch gap along a 36-inch meeting rail lets in the same amount of cold air as a 1.2 inch diameter hole cut directly into your window glass. You noticed the gap after your heating bill jumped 20% last month, and you spotted the light peeking through when you turned off the hallway lights to head to bed earlier, so you opted to fix it tonight instead of waiting for maintenance to schedule a visit.
Caulk Application Steps
You follow a simple set of steps to make sure the caulk adheres properly and creates a tight, even seal:
- Wipe the length of the meeting rail with a damp microfiber cloth to remove dust, pet hair, and leftover residue from old weatherstripping, then dry it completely with a paper towel so the caulk does not peel away prematurely.
- Cut the tip of the caulk tube at a 45-degree angle, making the opening just wide enough to lay a bead that matches the width of the gap you’re sealing, then puncture the inner seal with the nail attached to the caulk gun handle.
- Hold the caulk gun at a consistent 45-degree angle to the rail, squeezing the trigger slowly as you move along the gap from one end of your painter’s tape marks to the other, laying a smooth, continuous bead that fills the entire gap without overflowing onto the glass or sash frame.
- Drag the edge of your plastic putty knife along the bead immediately after application to smooth it out, wiping excess caulk off the knife onto a paper towel after every pass, then peel off the painter’s tape before the caulk starts to skin over.
You keep a bucket of soapy water nearby to wipe up any smudges of caulk that get on the glass before they dry, so you don’t have to scrape them off later with a razor blade.
Gap Size Reference
Before you applied the caulk, you measured the gap with a set of feeler gauges you keep in your junk drawer, to make sure you picked the right sealing material for the job. The table below outlines common gap sizes for meeting rails and the appropriate fixes for each:
| Gap Width | Recommended Fix | Drying Time Before Window Operation |
|---|---|---|
| 1/32 inch or smaller | Silicone sealant stick rubbed directly into the gap | 10 minutes |
| 1/32 to 1/8 inch | Low-temp acrylic latex caulk | 2 hours |
| 1/8 to 1/4 inch | Foam backer rod pressed into the gap first, then sealed with caulk | 24 hours |
| Over 1/4 inch | Professional sash realignment to fix root misalignment | N/A |
Your measurement came out to 3/32 of an inch, so the low-temp caulk you picked is exactly the right product for this job, no backer rod required. You opted for low-temp caulk because the hallway stays around 60 degrees this time of year, and standard caulk can take twice as long to dry in cooler temperatures.
Temporary Seal Check
Once you finish smoothing the caulk and removing the tape, you run the incense stick along the rail again to test if you sealed all the draft spots. You watch the smoke rise straight up without pulling toward the gap, so you know you covered all the problem areas you marked earlier. You run your hand along the length of the rail to feel for any remaining cold air seeping through, and you don’t detect any drafts that you missed. You prop a small folding chair against the window for the next two hours to remind your roommate not to open or close the sash while the caulk dries, so the seal doesn’t crack or pull away from the rail before it sets. This fix is temporary and may need to be redone as the sash shifts with seasonal temperature changes, so you make a mental note to check it periodically over the next few weeks. You turn off the hallway lights to double check for light peeking through, and you don’t see any faint lines of light along the rail, so you know you sealed the entire gap successfully.
Quarterly Gap Inspection
You add this check to your seasonal home maintenance routine, so you can catch small gaps before they widen enough to drive up your utility bills or let rain seep into the window frame. You plan to do the first follow-up check in three months, right before the coldest part of winter sets in, to make sure the caulk is still holding and no new gaps have formed as the wood sash shrinks in low humidity. You’ll run the same incense test along the meeting rail, check for any light peeking through when the hallway lights are off, and touch up any spots where the caulk has peeled or cracked. You also plan to check the rest of the windows in your apartment at the same time, to make sure none of their meeting rails have developed similar gaps that you haven’t noticed yet. If you spot a gap wider than 1/4 inch during that check, you’ll put in a maintenance request with your property manager to have the sash adjusted, rather than trying to seal it yourself. You also add a note to bring a small tube of caulk with you for the check, so you can fix any small gaps you find immediately instead of having to make a trip to the hardware store later.
